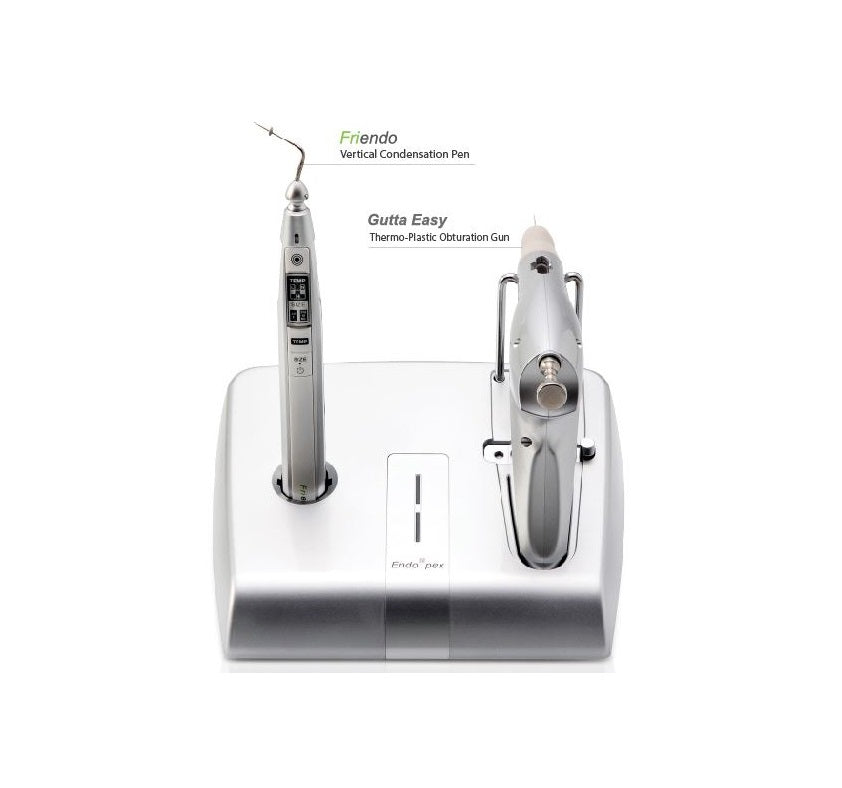

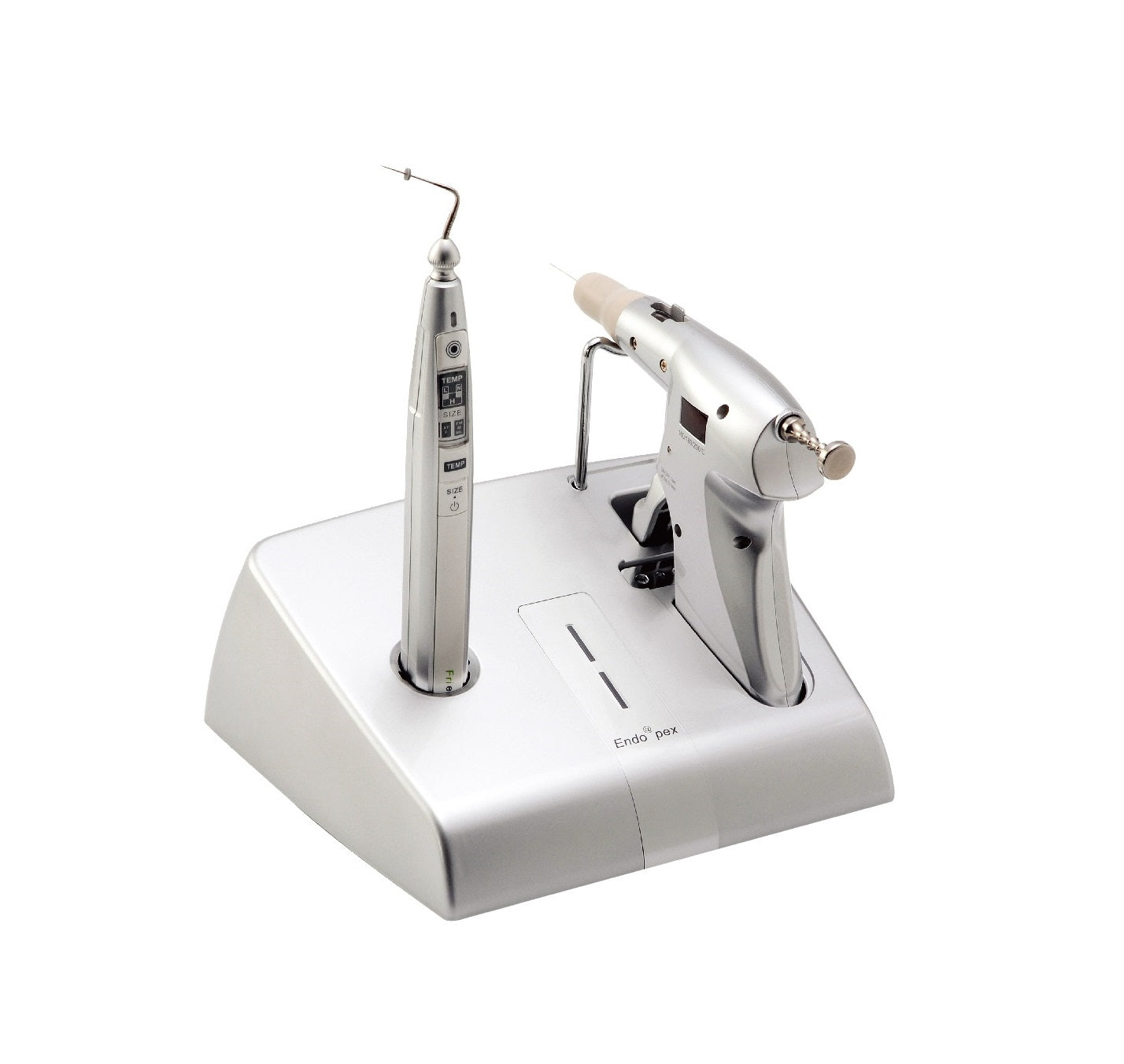

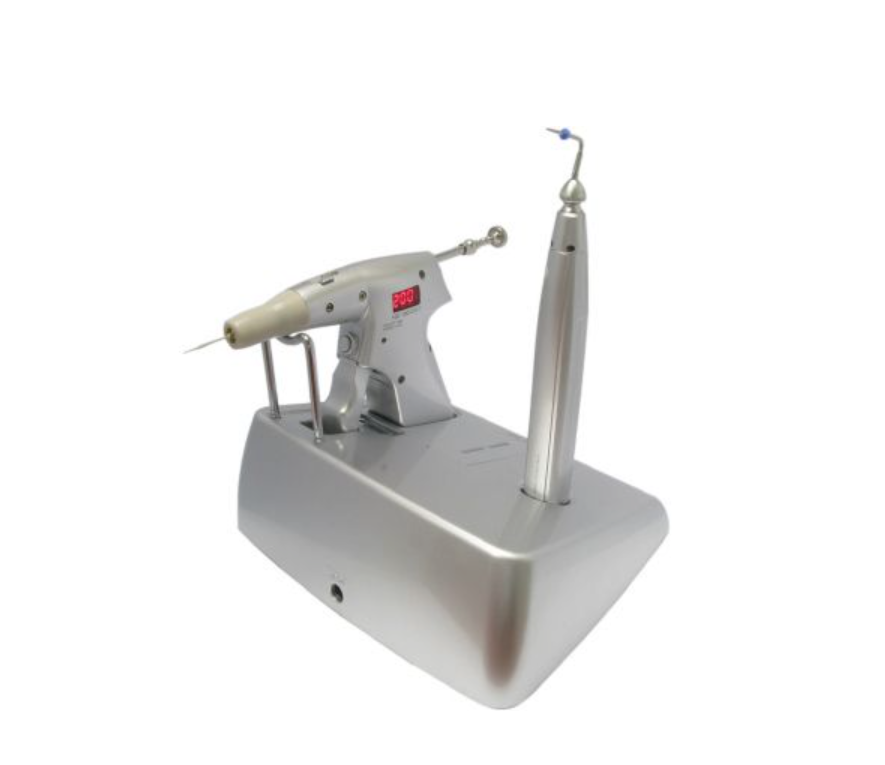

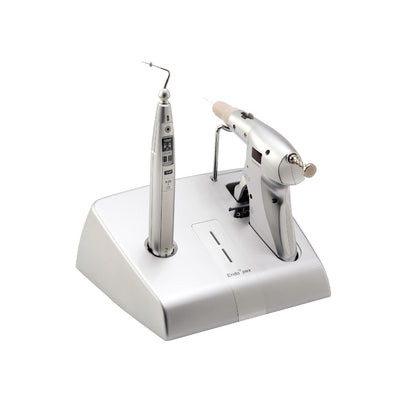

Endo-Apex : 2 in 1 무선 치근관 폐쇄 시스템

When different adapter is used, since the voltages are different, it will burn your unit. It is very crucial that you use our adapters for our products only. Please contact us immediately

Pins corrode due to too much sterilization. Any liquid left from sterilization will cause corrosion. Make sure to have the unit dry after sterilization.

This is the most common complaint that we receive from the customers.

Almost 98% cases are due to lack of charging.

Please keep the unit charged at ALL TIMES for longer battery lifespan.

The heating stops after 3 seconds and activates again after a short pause because we have upgraded our software to prevent any burns with longer heating cycle during the treatment for patient safety.

“Er1” shows on LED display when the heater is in a bad contact with the PCB inside. Hold the Gutta-Easy Gun Body steady while rotating the heating end at least 360° to realign the PCB's contact with the heater.

If the device still displays "Er1", please request for an inspection.

"Low" show on LED display when there is no battery, please charge the battery.

If the gun was not charged, charge it, and try turning it on again.

Also, try the reset button on the bottom of the handpiece. Press the square button. Once pressed, it will click in. Leave it for few seconds and press it again. Unit will turn on. If it still doesn’t turn on, please request for an inspection.

Please request for an inspection. Our repair department would have to disassemble the unit and remove the pellet inside.

To prevent this from happening, please use 1 pellet at a time. Do not use 2. Once the pellet is inserted, insert the plunger pushing towards the mouth of the handpiece.

Also, make sure the plunger has the white o-ring (Teflon ring) in place. Without Telfon Ring, Gutta Percha Pellet can move incorrectly and get stuck inside device.

Friendo

Hand Piece:

1. Remove the hand piece from the charger.
2. Thoroughly clean the surface of the hand piece by wiping with a soft cloth dampened with disinfection solution not containing phenols.
3. Do not directly spray disinfection solution or disassemble any portion of the hand piece for cleaning.

Charger Base:

1. Remove the hand piece from the charger and completely disconnect from power supply.
2. Gently clean the surface of the charger by wiping with a soft cloth dampened with disinfection solution not containing phenols.
3. Do not directly spray disinfection solution or disassemble any portion of the hand piece for cleaning.

Sterilization of Pen Tip:

1. Make sure to remove all visible residue from the tip, then use thermo-disinfector to steam sterilize for cleaning (ultrasonic cleaner is recommended).
2. Disinfect, clean and steam sterilize by using proper cleaning equipments after each use.
3. New tips are not sterilized, and must be properly sterilized before use by autoclaving above 121°C (250°F) for 30 minutes and dry it for 30 minutes.
4. Ensure to clean, sterilize and disinfect tips after each use.

Hand Piece Protector:

In a steam sterilization method

gravity displacement type : sterilization temp 121°C (250°F)

Time : 30 minutes, Drying Time : 30 minutes

Gutta Easy

Internal Cleaning of Hand Piece:

1. Remove the thermal protection cover.
2. Unscrew the gun tip counter clockwise to remove.
3. Turn on the device and set to 160°C.
4. Teflon cleaning brush is required for heat chamber cleaning.
5. Insert the cleaning brush to the plunger insertion hole and push it all the way through.
6. Grab and pull out the cleaning brush.

* Repeat steps 5 and 6 as needed

External Cleaning of Hand Piece:

1. Remove the hand piece from the charger.
2. Thoroughly clean the surface of the hand piece by wiping with a soft cloth dampened with disinfection solution not containing phenols.
3. Do not directly spray the disinfection solution or disassemble the hand piece for cleaning.

* Gun tip is disposable and cleaning is not recommended.

Cleaning of Charger:

1. Remove the hand piece from the charger and completely disconnect the power supply.
2. Gently clean the surface of the charger by wiping with a soft cloth dampened with disinfection solution not containing phenols.
3. Do not directly spray disinfection solution for cleaning.

Sterilizing of Thermal Protector and Gun Tip:

In a steam sterilization method

gravity displacement type : sterilization temp 121°C (250°F)

Time : 30 minutes, Drying Time : 30 minutes

WARNING

Do not use nonvolatile guttapercha remover or similar cleaning solution. Permanent internal or external damage may occur when improperly cleaned.

Do NOT Use :

- Glutaraldehyde

- Lysol®

- Ammonia complex

- Denatured Alcohol

- Phenol or phenolic cleaner

- Iodine complex solutions

Precautions:

- Do not use other pellet brands, MUST only use OUR BRAND.

- Do not use expired pellets.

- Replace all worn out/damaged Plunger Teflon Ring.

- Squeeze out the leftover pellet after each use.

- Clean thoroughly after each use.
