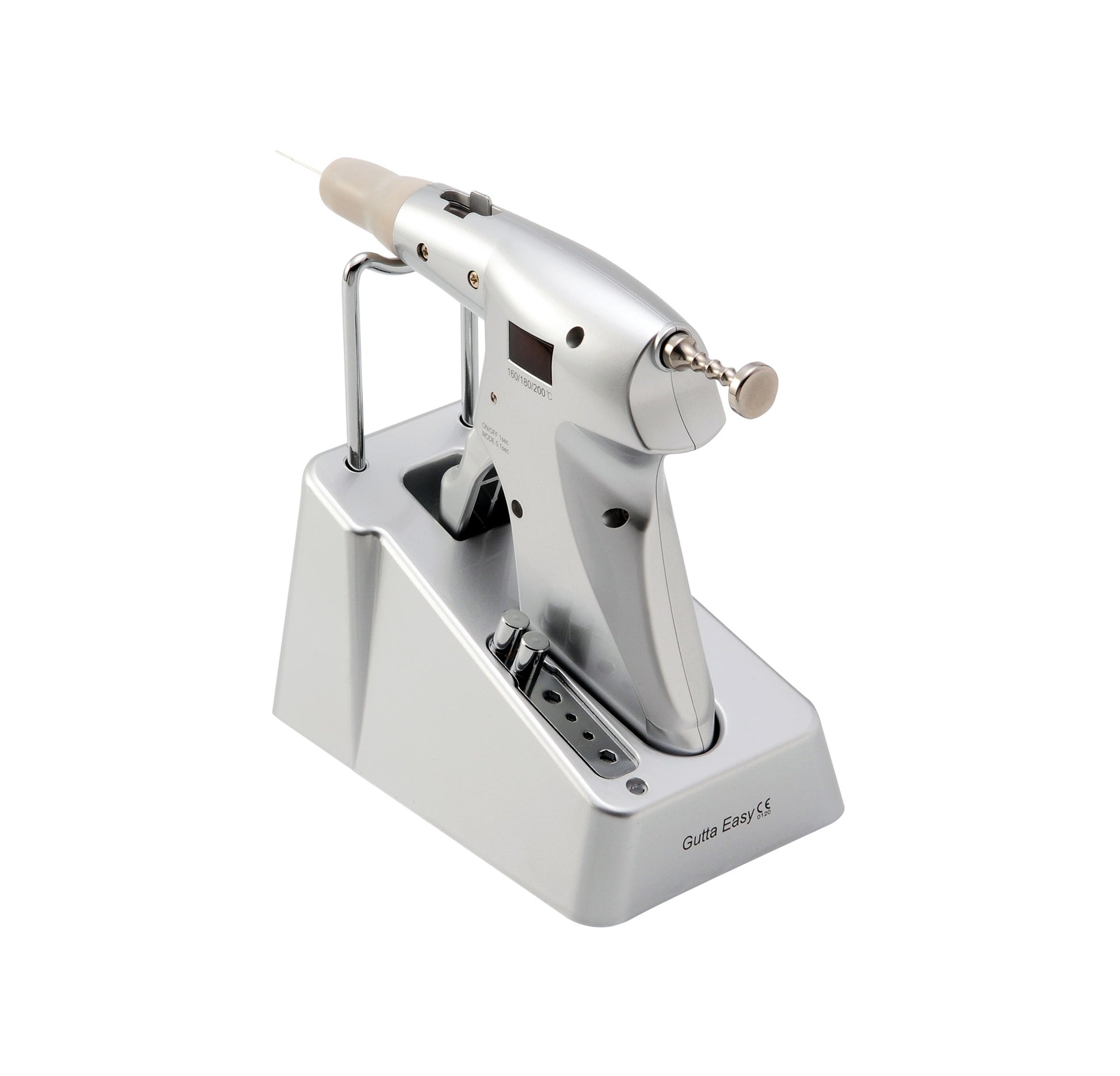

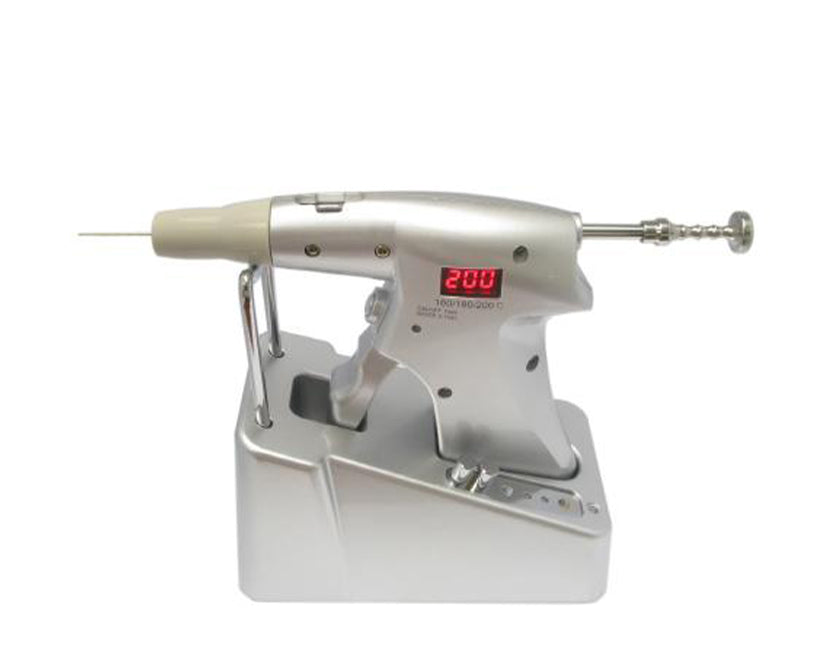

• Gutta easy backfill endodontic obturation gun.

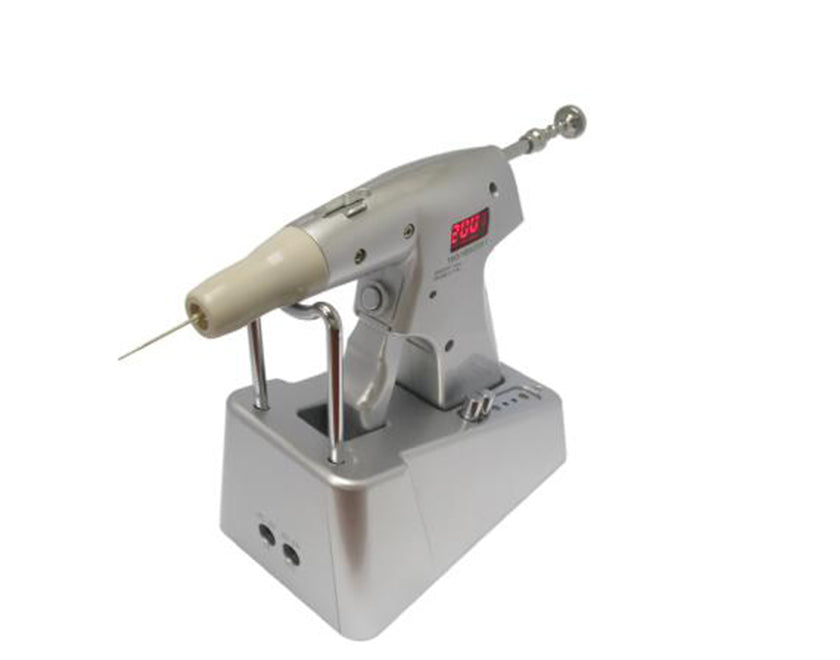

  • Gutta easy endodontic obturation gun back view.

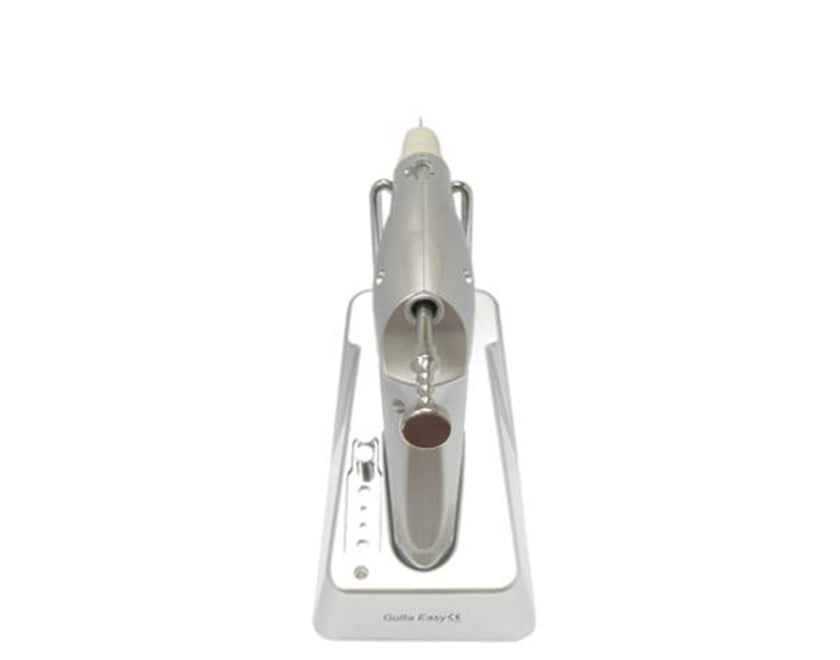

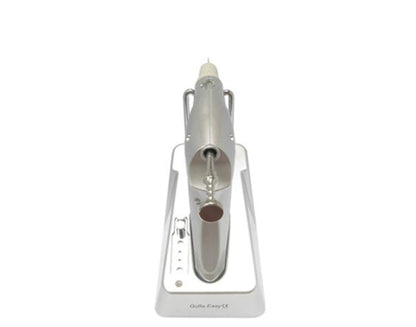

  • Gutta easy endodontic obturation gun front view.

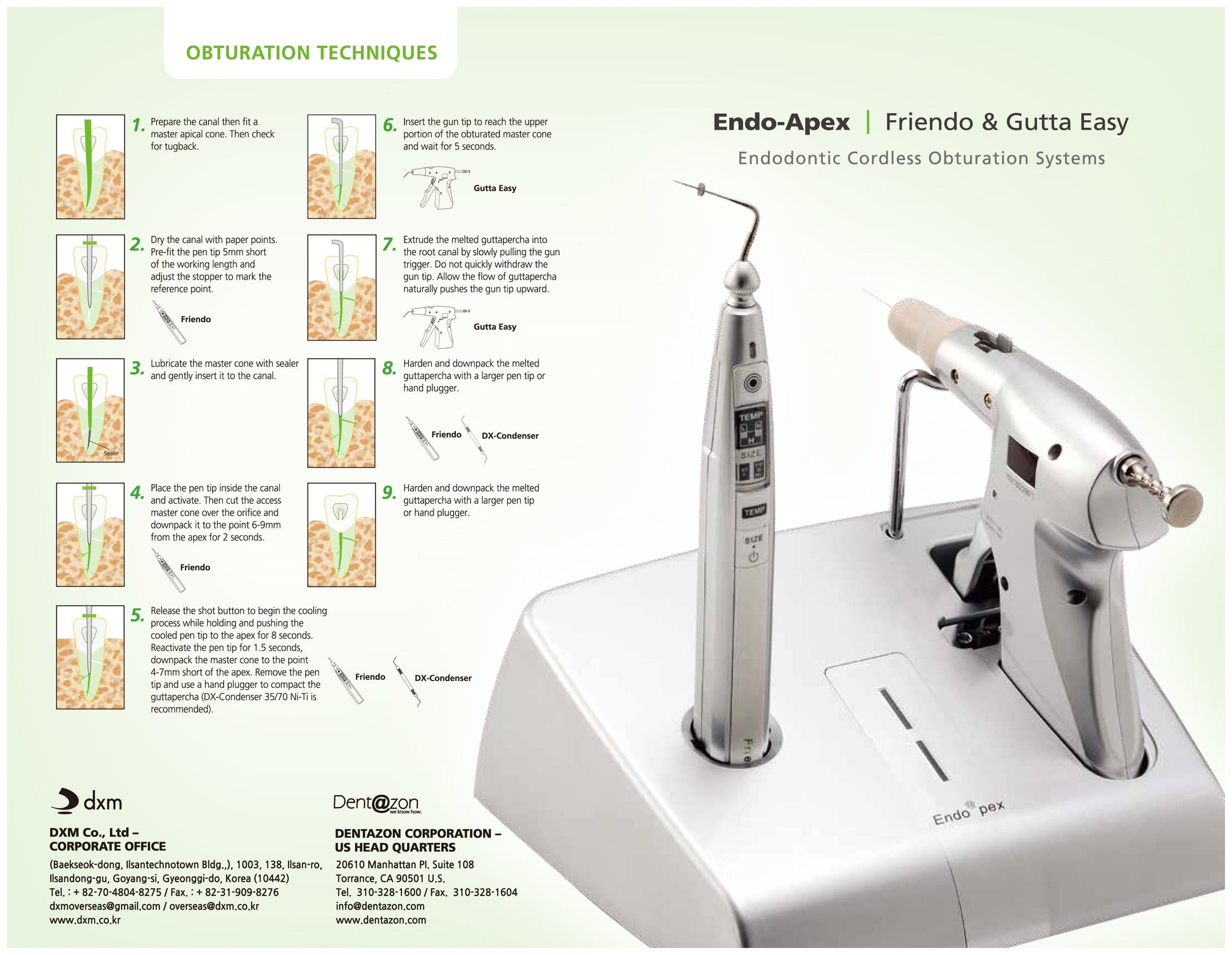

  • Obturation techniques for the Gutta easy backfill endodontic obturation gun.

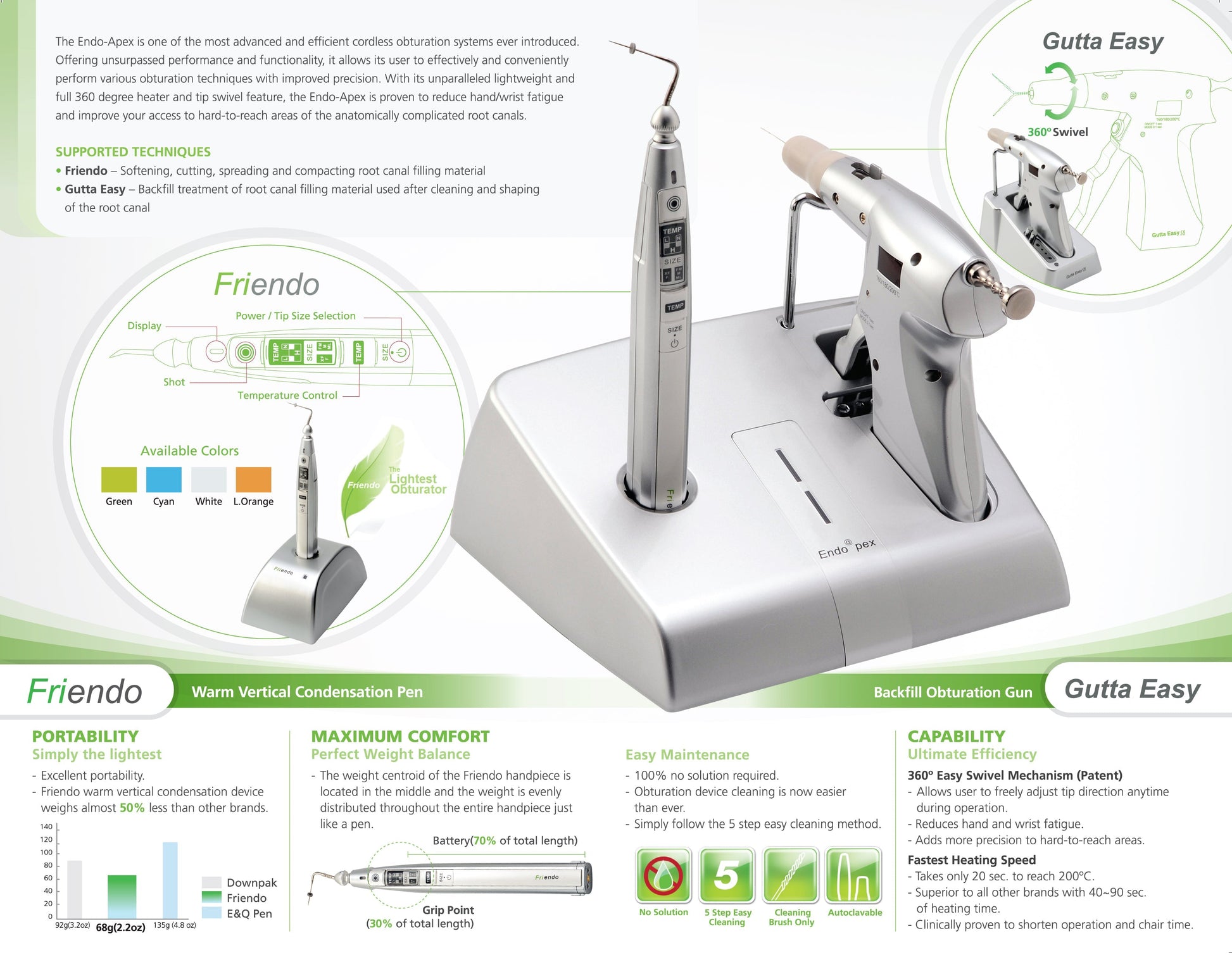

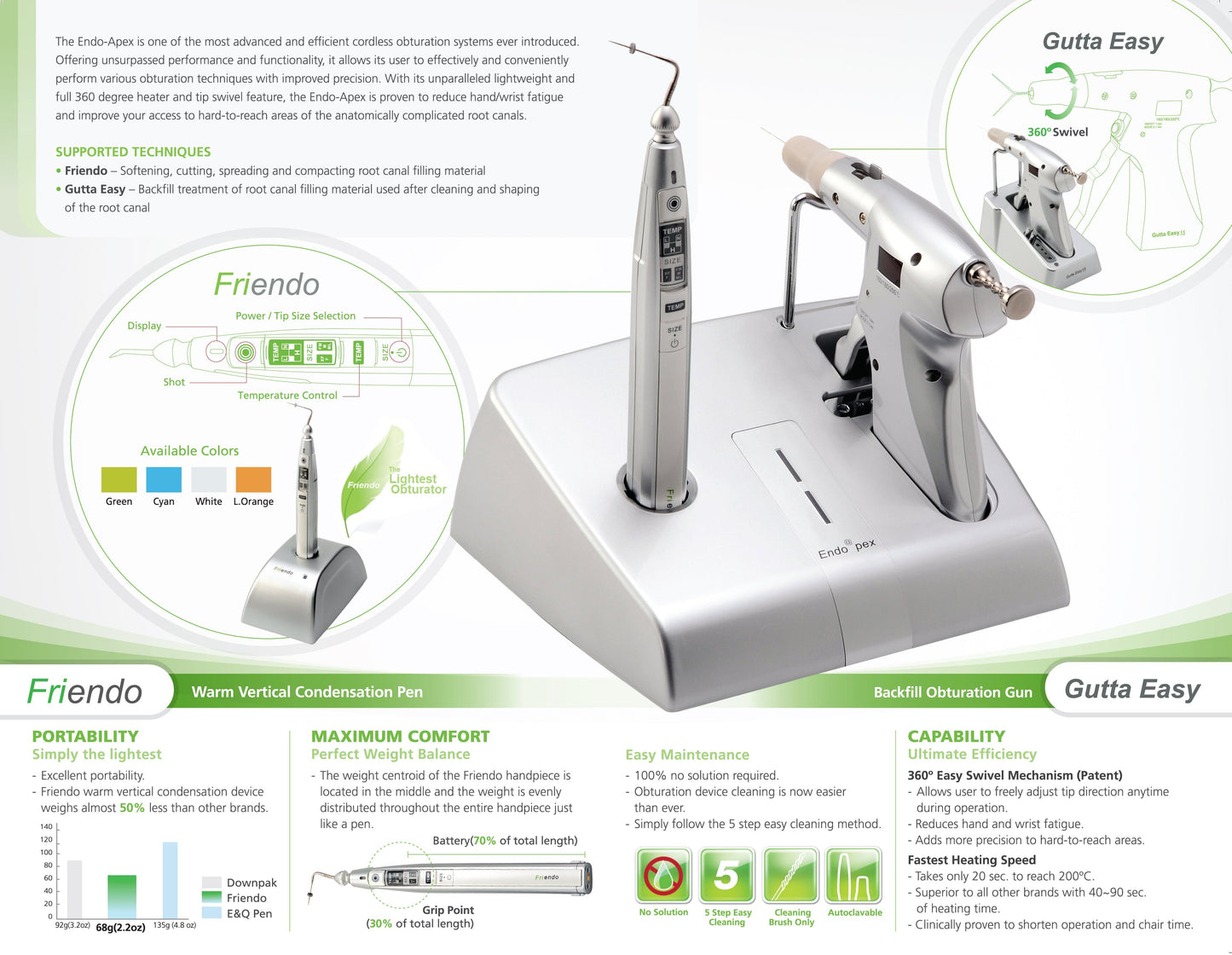

  • Benefits of the Gutta easy backfill endodontic obturation gun include patented swivel mechanism, fast heating speed and easy maintenance.
1 6

Gutta Easy™ : Cordless Thermoplastic Endodontic Obturation Gun

Gutta Easy™ : Cordless Thermoplastic Endodontic Obturation Gun

SKU: EG-1100

  • Our patented Easy Swivel increases precision of thermo-plasticized back fill obturation
  • Reduces hand and wrist fatigue and increases precision in hard-to-reach areas
  • 3 adjustable temperature settings (160 / 180 / 200 °C)
  • 2 available tip sized (23G / 25G)
View full details

Evaluation of Endo@pex

Visit

Clinical Procedure

Procedures

Video

Research and Publications

Endodontic Filling Material Removal Study

Study: A Novel Ultrasonic Tip for Removal of Filling Material in Flattened/Oval-Shaped Root Canals: A MicroCT Study

Authors:

Melissa Esther Rivera-Peña, Universidade de São Paulo - USP, Bauru School of Dentistry Department of Operative Dentistry, Endodontics and Dental Materials, Bauru, SP, Brazil

Marco Antônio Húngaro Duarte, Universidade de São Paulo - USP, Bauru School of Dentistry Department of Operative Dentistry, Endodontics and Dental Materials, Bauru, SP, Brazil

Murilo Priori Alcalde, Universidade de São Paulo - USP, Bauru School of Dentistry Department of Operative Dentistry, Endodontics and Dental Materials, Bauru, SP, Brazil

Flaviana Bombarda DE Andrade, Universidade de São Paulo - USP, Bauru School of Dentistry Department of Operative Dentistry, Endodontics and Dental Materials, Bauru, SP, Brazil

Rodrigo Ricci Vivan, Universidade de São Paulo - USP, Bauru School of Dentistry Department of Operative Dentistry, Endodontics and Dental Materials, Bauru, SP, Brazil

Journal: Brazilian Oral Research, 2018 Aug 13;32:e88. doi: 10.1590/1807-3107bor-2018.vol32.0088. PMID: 30110086.

Publication Date: August 2018

Products Used: Friendo™ and Gutta Easy™



Summary: This microCT study evaluated protocols for removing filling material from flattened or oval-shaped root canals. Friendo™ and Gutta Easy™ were used during the root canal filling procedure before retreatment testing. The study found that using the ClearSonic ultrasonic tip followed by Reciproc resulted in the lowest percentage of remaining filling material in the whole canal and apical third.



Result Highlight: Friendo™ and Gutta Easy™ were used in the obturation protocol for this endodontic retreatment study.

Complex Dens Invaginatus Case Report

Study: Non-Surgical Endodontic Treatment of a Type III Dens Invaginatus With Large Perirradicular Radiolucency Using Bioceramic Materials

Authors:

Bárbara de Assis Marra, Universidade Federal de Uberlândia, Brazil

Alexia Mata Galvão, Faculdade Anhanguera, Brazil

Ana Clara Alves Araújo, Universidade Federal de Uberlândia, Brazil

Cristiane Melo Caram, Prática Privada, Brazil

Jessica Monteiro Mendes, Prática Privada, Brazil

Maria Antonieta Veloso Carvalho de Oliveira, Universidade Federal de Uberlândia, Brazil

Journal: Research, Society and Development, v. 13, n. 8, e0513846478, 2024 (CC BY 4.0) | ISSN 2525-3409 | DOI: http://dx.doi.org/10.33448/rsd-v13i8.46478

Publication Date: August 2024

Products Used: Friendo™ and Gutta Easy™



Summary: This case report described non-surgical endodontic treatment of a complex type III dens invaginatus case using CBCT, operative microscopy, bioceramic materials, and thermoplasticized obturation. Friendo™ and Gutta Easy™ were used during the obturation stage. The authors reported lesion reduction and bone formation during follow-up.



Result Highlight: Friendo™ and Gutta Easy™ were used as part of the thermoplasticized obturation protocol in a complex endodontic case report.

Plugger Temperature of Cordless Heat Carriers

Study: Plugger Temperature of Cordless Heat Carriers According to the Time Elapsed

Authors:

Hoon-Sang Chang, Department of Conservative Dentistry, Chonnam National University School of Dentistry, Gwangju, Korea

Se-Hee Park, Department of Conservative Dentistry, Gangneung-Wonju National University School of Dentistry, Gangneung, Korea

Kyung-Mo Cho, Department of Conservative Dentistry, Gangneung-Wonju National University School of Dentistry, Gangneung, Korea

Corresponding Author: Jin-Woo Kim, DDS, MSD, PhD. Professor, Department of Conservative Dentistry, Gangneung-Wonju National University College of Dentistry, 7 Jukheon-gil, Gangneung 25457, Korea

Journal: Restorative Dentistry & Endodontics. 2018 Feb 7;43(1):e12. doi: 10.5395/rde.2018.43.e12

Publication Date: February 2018

Product Used: Friendo™



Summary: This study measured plugger tip temperatures of cordless heat carriers set at 200°C, including Friendo™. The authors reported that plugger temperature was affected by both plugger taper and heat-carrier brand, and that clinicians should pay attention to temperature setting and activation time when using cordless heat carriers.



Result Highlight: Friendo™ was included in a comparative temperature study of cordless heat carriers, highlighting the importance of activation time and plugger selection.

※ Summaries are based on the cited articles. All rights to the original article belong to the authors and/or publisher. Product names and trademarks mentioned in the cited studies belong to their respective owners.

FAQ

Charger has a burning smell

When different adapter is used, since the voltages are different, it will burn your unit. It is very crucial that you use our adapters for our products only. Please contact us immediately

Battery pins / Charger pins are corroded and will not charge

Pins corrode due to too much sterilization. Any liquid left from sterilization will cause corrosion. Make sure to have the unit dry after sterilization.

Friendo Pen is not turning on

This is the most common complaint that we receive from the customers.

Almost 98% cases are due to lack of charging.

Please keep the unit charged at ALL TIMES for longer battery lifespan.

Why does my Friendo Heating Condensation Pen stop heating after a few seconds?

The heating stops after 3 seconds and activates again after a short pause because we have upgraded our software to prevent any burns with longer heating cycle during the treatment for patient safety.

My Gutta Easy obturation gun shows “Er1” " Low". What does this mean?

“Er1” shows on LED display when the heater is in a bad contact with the PCB inside. Hold the Gutta-Easy Gun Body steady while rotating the heating end at least 360° to realign the PCB's contact with the heater.

If the device still displays "Er1", please request for an inspection.

"Low" show on LED display when there is no battery, please charge the battery.

My Gutta Easy obturation gun does not turn on. What should I do?

If the gun was not charged, charge it, and try turning it on again.


Also, try the reset button on the bottom of the handpiece. Press the square button. Once pressed, it will click in. Leave it for few seconds and press it again. Unit will turn on. If it still doesn’t turn on, please request for an inspection.

Gutta percha pellet is stuck in my Gutta Easy obturation gun and does not work

Please request for an inspection. Our repair department would have to disassemble the unit and remove the pellet inside.


To prevent this from happening, please use 1 pellet at a time. Do not use 2. Once the pellet is inserted, insert the plunger pushing towards the mouth of the handpiece.


Also, make sure the plunger has the white o-ring (Teflon ring) in place. Without Telfon Ring, Gutta Percha Pellet can move incorrectly and get stuck inside device.

Cleaning Instructions

Gutta Easy

Internal Cleaning of Hand Piece:

  1. Remove the thermal protection cover.
  2. Unscrew the gun tip counter clockwise to remove.
  3. Turn on the device and set to 160°C.
  4. Teflon cleaning brush is required for heat chamber cleaning.
  5. Insert the cleaning brush to the plunger insertion hole and push it all the way through.
  6. Grab and pull out the cleaning brush.

* Repeat steps 5 and 6 as needed


External Cleaning of Hand Piece:

  1. Remove the hand piece from the charger.
  2. Thoroughly clean the surface of the hand piece by wiping with a soft cloth dampened with disinfection solution not containing phenols.
  3. Do not directly spray the disinfection solution or disassemble the hand piece for cleaning.

* Gun tip is disposable and cleaning is not recommended.


Cleaning of Charger:

  1. Remove the hand piece from the charger and completely disconnect the power supply.
  2. Gently clean the surface of the charger by wiping with a soft cloth dampened with disinfection solution not containing phenols.
  3. Do not directly spray disinfection solution for cleaning.


Sterilizing of Thermal Protector and Gun Tip:

In a steam sterilization method

gravity displacement type : sterilization temp 121°C (250°F)

Time : 30 minutes, Drying Time : 30 minutes


WARNING

Do not use nonvolatile guttapercha remover or similar cleaning solution. Permanent internal or external damage may occur when improperly cleaned.


Do NOT Use :

- Glutaraldehyde

- Lysol®

- Ammonia complex

- Denatured Alcohol

- Phenol or phenolic cleaner

- Iodine complex solutions


Precautions:

- Do not use other pellet brands, MUST only use OUR BRAND.

- Do not use expired pellets.

- Replace all worn out/damaged Plunger Teflon Ring.

- Squeeze out the leftover pellet after each use.

- Clean thoroughly after each use.
